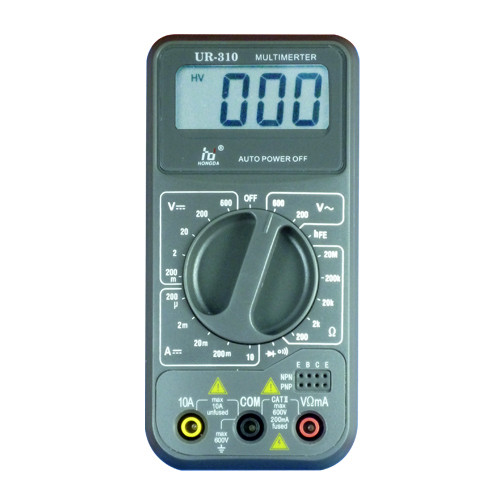

Pocket Auto Ranging Digital Multimeter 600V DC 10A DC current

Name: Pocket Auto Ranging Digital Multimeter 600V DC 10A DC current
Brand: HD , OEM
Price: 1 USD

Brand Name : HD , OEM

Model Number : UR310

Certification : CE

Place of Origin : Shenzhen ,China

MOQ : 500pcs

Price : negotiation

Payment Terms : FOB HK

Supply Ability : 500, 0PCS/week

Delivery Time : 15-20 days

Packaging Details : Gift box

Meter Color : Blue

Material : ABS plastic

LCD size : 20x49mm

Weight : 180g

Packing : Color box

Power supply : 9V

Contact Now

Pocket Auto Ranging Digital Multimeter 600V DC 10A DC current

Quik details :

Place of Origin : Shenzhen ,China
Model: UR 310
Brand Name : HD , OEM
Measuring Current Range : 200uA-10A
Measuring Voltage Range :200mV-600V
Measuring Resistance Range : 200Ω-20MΩ
Color :Blue
Weight : 180g
MOQ : 500PCS
Payment : T / T , Paypal , West Union

Specification :

Basic function	Measurement range	Basic accuracy
DC voltage	200mV/2V/20V/200V/600V	±(0.8%+1)
AC voltage	200V/600V	±(1.5%+10)
DC current	200µA/2mA/20mA/200mA/10A	±(1.2%+2)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/20MΩ	±(1.0%+3)
Diode test	V
Continuity buzzer	V
Low power indicate	V
Full symbolic display	V
Measurement	V
Backlight	V
Maximum display	1999
Displayer size	20*47mm
Auto power off	V
Battery	9V

General Characteristic :

Color Yellow + Blue
Weight 180g(including batteries)
Dimension 141*69*36mm
Accessories Test lead ,manual ,battery
Standard inner package Color box
Standard package quality 50 sets
Outer packing size 37*29*57cm
Standard packing gross weight 23.5kg

Discription :

SAFETY RULES:

1.This meter is designed and tested in accordance with IEC publication 1010,pollution degree II and installation category (overvoltage category)II.
2.This meter has been tested according to the following EC Directives.
* 89/336/EEC(EMC of Nov.,1992,Electromagnetic Compatibility)
* 73/23/EEC (Product safety law of June 11,1979)
3.This meter is designed to be indoor use at temperature 5℃to 40℃ and altitude up to 2000M.
4.To ensure that the meter is used safely, follow all safety and operating instructions in
this operation manual. If the meter is not used as described in this operation
manual ,the safety features of the meter might be impaired.
