Portable Digital Insulation Resistance Meter 2000MOhm megger test equipment

Name: Portable Digital Insulation Resistance Meter 2000MOhm megger test equipment
Brand: HD , OEM
Price: 1 USD

Place of Origin : Shenzhen ,China

Brand Name : HD , OEM

Certification : CE

Model Number : HDT20A

MOQ : 200pcs

Price : negotiation

Packaging Details : Gift box

Delivery Time : 30-35 days

Payment Terms : FOB HK

Supply Ability : 100, 0PCS/week

Contact Now

Portable Digital Insulation Resistance Meter 2000MOhm megger test equipment

Quik details :

Place of Origin : Shenzhen ,China
Model: HDT20A
Brand Name : HD , OEM
Measuring Voltage Range : 200mV-700V
Minimum Resolution : 1MΩ
Weight : 500g
MOQ : 200PCS
Payment : T / T , Paypal , West Union

Discription :

Megger Insulation Resistance Tester
Insulation Measure to 2000MΩ
Insulation Test V to 1000V

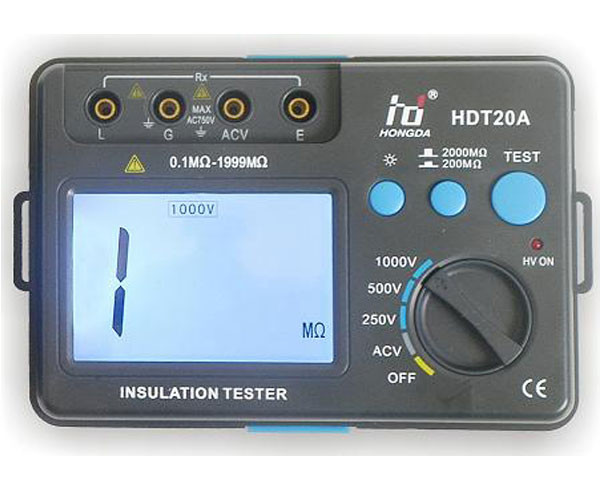

HDT20A Cheap Portable 1000V 2000MOhm Short Megger Insulation Resistance Tester
The HDT20A Megger Insulation Resistance Tester is designed and manufactured according to the safety requirements
set out by the IEC61010-1 standards for electronic test instruments . The design and manufacture of the megger
insulation resistance tester is strictly based on the provisions in the 1000V CAT Ⅲ of IEC61010-1 and the Stipulation
of 2-Pollution Grade.

Specification:

Basic Function	Range
Measuring voltage	250V/500V/1000V
Insulation resistance	0.1MΩ---2000MΩ
Measuring Voltage	AC750V
Operational Voltage	195-253V (45Hz-65Hz)
Basic accuracy	±(5% +5)
Minimum Resolution	1 MΩ
Short-Circuit Current	﹤1.5mA
AC Voltage Test	750V(40-70Hz)
Insulation Resistance	≥ 500MΩ(1000V)
Withstand Voltage	AC 2KV 50Hz 1min
Operation Temperature and Humidity	0-40℃ 85RH
Low Battery Indication	√
Max Display	1999

General Characteristic :

Power Supply : 1.5V(AA) * 6
LCD Size 55*33mm
Meter Color : Gray
Meter Weight : 500g
Meter Size : 500g
Meter Size : 170*110*60mm
Accessories : Test lead ,manual ,battery
Standard inner package : Color box
Standard package quality : 30 sets
Outer packing size　:39*39*50.5cm
Standard packing gross weight :27 kg

Our Service :

24 hours service.
15 well-educated and experienced staff
4 QC ensure every order made strictly as per clients' requests.
Over 50 factories supported with positive relationship.

Product Tags:

insulation resistance tester

megger insulation tester

Quality Portable Digital Insulation Resistance Meter 2000MOhm megger test equipment wholesale

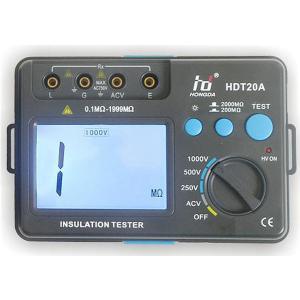

Portable Digital Insulation Resistance Meter 2000MOhm megger test equipment Images
