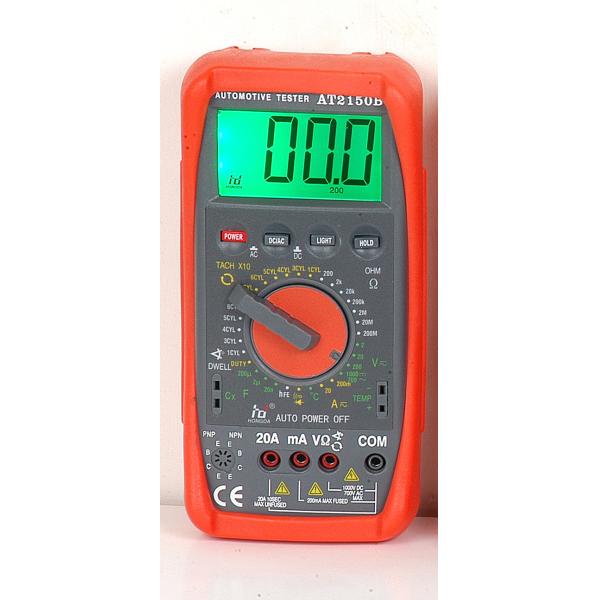

Green Backlight Buzzer Digital Automotive Multimeter With Dwell Tach

Name: Green Backlight Buzzer Digital Automotive Multimeter With Dwell Tach
Brand: HD , OEM
Price: 1 USD

Quality Green Backlight Buzzer Digital Automotive Multimeter With Dwell Tach wholesale

Brand Name : HD , OEM

Model Number : AT2150B

Certification : CE

Place of Origin : Shenzhen ,China

MOQ : 300pcs

Price : negotiation

Payment Terms : FOB HK, T/T, Western Union

Supply Ability : 200 ,0PCS/week

Delivery Time : 20-30 days

Packaging Details : Gift box

Holster : Red

Display : digital

Item type : car repair tool

Usage : DC AC Dwell TACH

Color : Grey

Weight : 780g

Contact Now

Green Backlight Buzzer Digital Automotive Multimeter With Dwell Tach

Quik detail

Automotive Multimeter
Dwell : 1/3/4/5/6/8 CYL
TACH : 1/3/4/5/6/8 CYL
Measuring Current Range : 200mA-20A
Measuring Voltage Range :2V-1000V
Measuring Resistance Range : 200Ω-20MΩ
Capacitance : 20nF/2uF/200uF
Temperaturer : -40-1000C

Discription

Low power consumption CMOS double integration, A/D transform integrated circuit, auto zero calibration, auto polarity display, low battery and over range indication.
DC basic accuracy : +0.5% (3 1/2 digits)
Capacitor measurement : 1pF~200uF
Temperature measurement : -40ºC~1000ºC
Full range over-load protection function.
Have back-light valve features, it is suitable to be used in the obscure ray environment operation.
Auto power off function: the meter will shut off automatically about 15 seconds after no performance.
Maximum display : 1999 (3 1/2 digits)
LCD display : 70 x 48mm big screen, high contrast, Word height : 28mm
Power : one 9V battery (NEDA 1604, 6F22 model or identical)
Low battery indication: mark on display
Size : 192x88x42mm
Weight : approximate 400g (including battery and cover)
Environment conditions :
Operation temperature : 0ºC~40ºC Relative humidity <85%
Storage Temperature : -10ºC~50ºC Relative humidity <85%
Keeping accuracy temperature : 23ºC+5ºC
Relative humidity <75%

Technical Specifications

Accuracy : + (% reading + digit) one year warranty.
Environmental humidity : 23ºC+5ºC
Relative humidity : <75%

Specification

Basic function	Measurement range	Basic accuracy
DC voltage	2V/20V/200V/1000V	±(0.5%+3)
AC voltage	2V/20V/200V/700V	±(0.8%+3)
DC current	200m---20A	±(1.2%+3)
AC current	200m---20A	±(1.2%+3)
Resistance	200 /2K/20K/200K/2M/20/200MΩ	±(0.8%+3)
Capacitance	20nF/2uF/200uF	±(5.0%+3)
Temperature	--40℃---1000℃	±(1.5%+15)
Dwell	1/3/4/5/6/8 CYL	±(1.2%+2)
TACH	1/3/4/5/6/8 CYL	±(1.2%+2)

Diode test	V
Continuity buzzer	V
Duty cycle	V
Measurement	V
Backlight	V
Data hold	V
hFE	V
Max dispaly	1999
